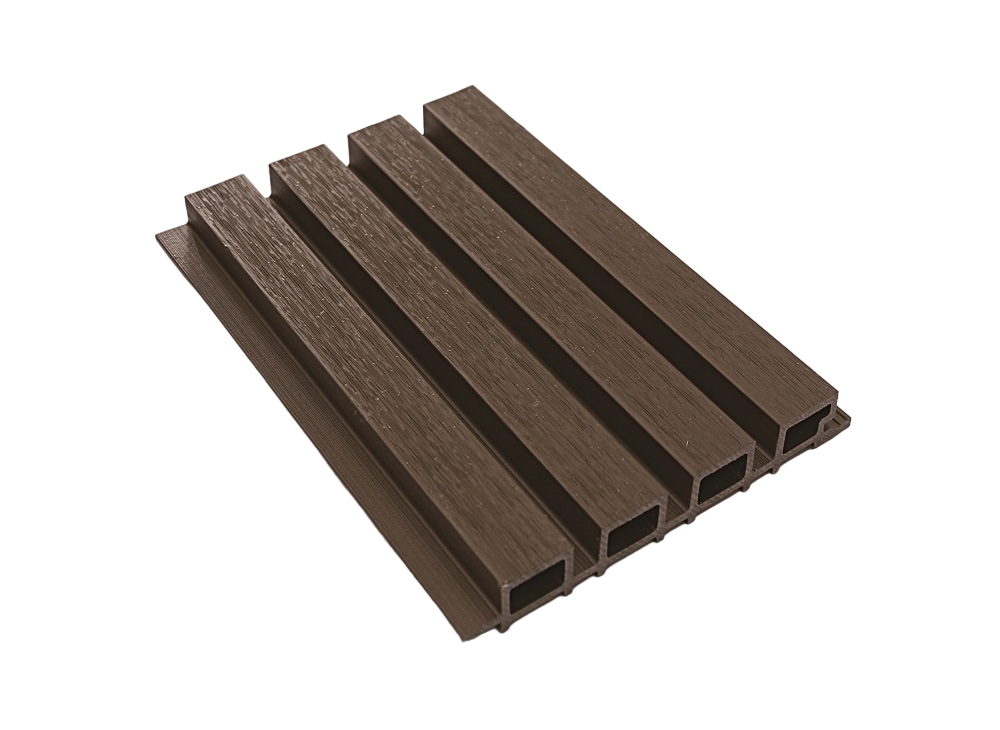

Brown External Wall Cladding (QLD)

Regular price
Sale price Regular price
Unit price
  • SKU:
    TEWCB3
Ask a question

Ask a Question

* Required fields

Share

Size:

219mmx28mmx3000mm , 219mmx28mmx5400mm

Lengths:

3000mm, 5400mm

Embossing:

Lines Finish

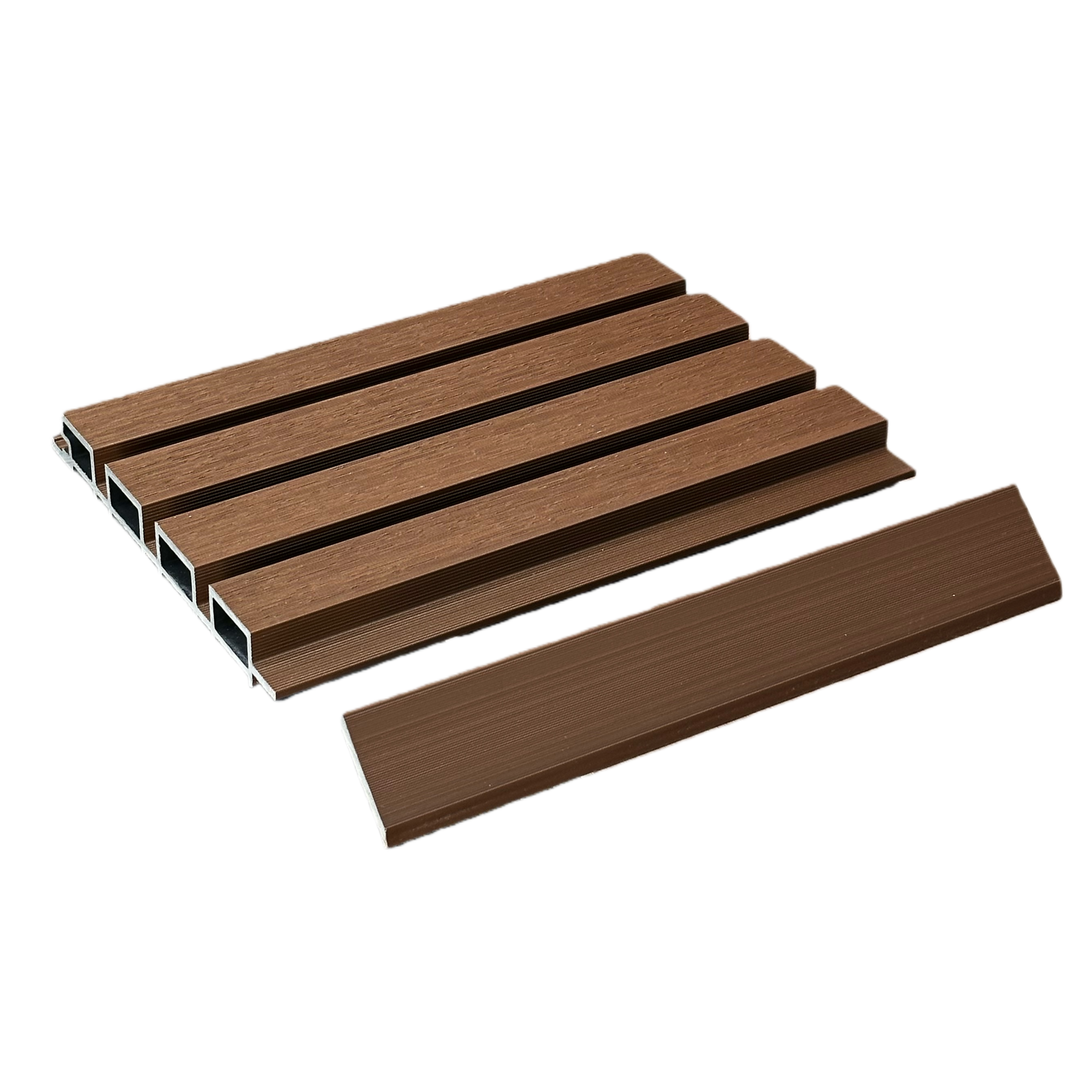

Side View:

page9image52766880

Brown External Wall Cladding (QLD)

Brown External Wall Cladding (QLD)

Main Components

Installation Guide

Designed for Your Comfort

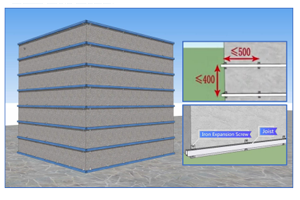

Measure the wall size, Fix the joist to the wall by expansion bolt and connector, pls keep the span between two joist within 400mm, distance between two expension screws wthin 500mm.

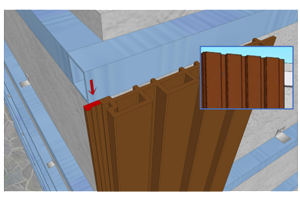

Cut the red part of the edge of 1st panel that fixed at the corner and fix it by screws.

Fix 2nd wall panel at the corner as picture and fix it by screws.

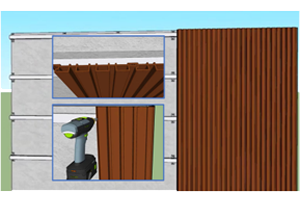

Click the wall panels one by one, fix the screws at the edge groove

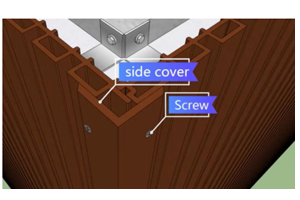

Fix the edge cover to the corner by screws.

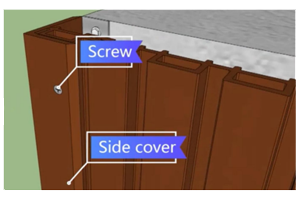

Fix the edge cover to the end of wall by screws
