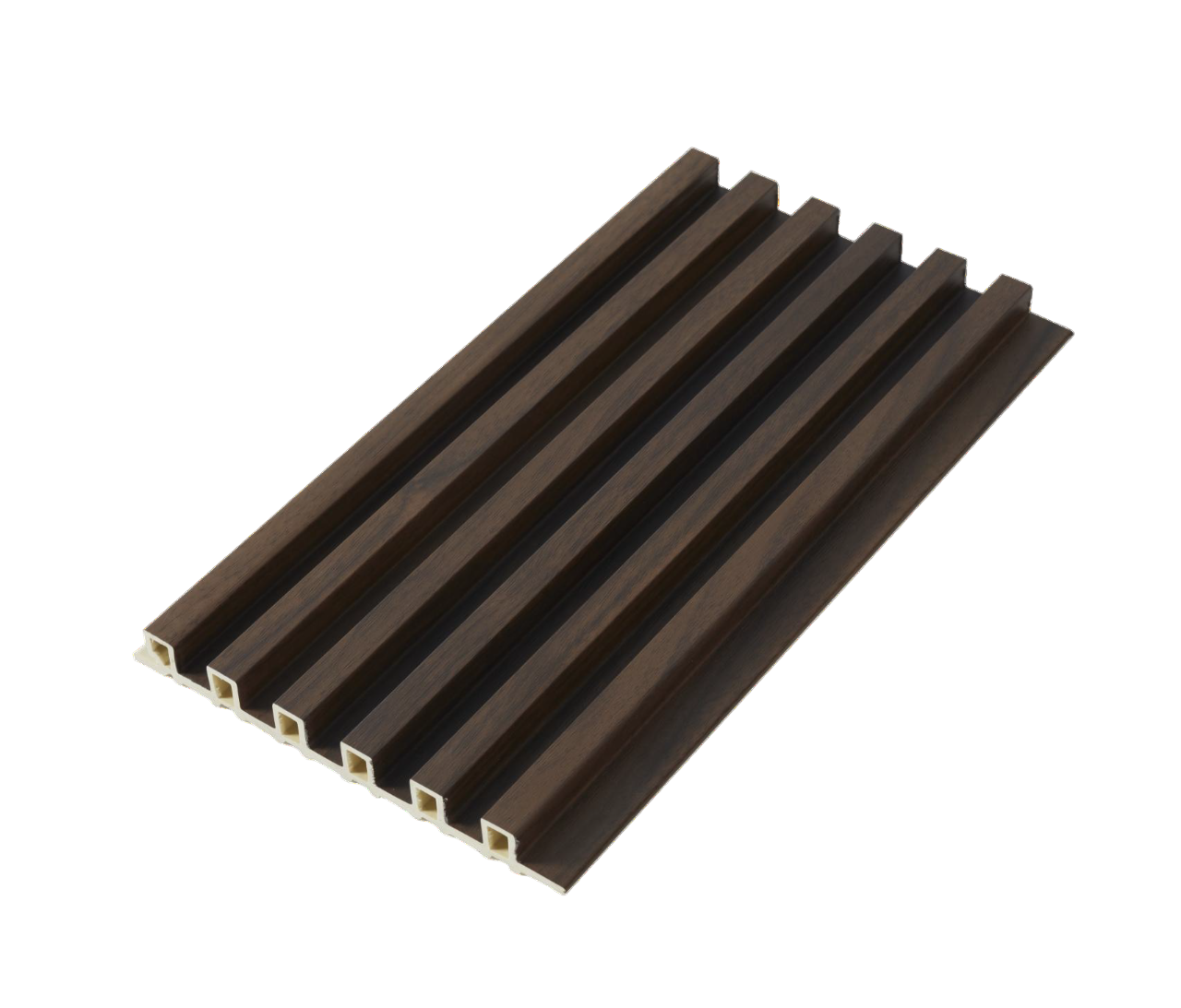

Six Pier Brown Internal PVC Wall Cladding

Place the first wall panel on the wall with its tongue side flush with the wall edge Note: Wall panels can be installed by liquid nail + clip + screws, can make panels fixed more strongly.

Use an nail gun to fix the panel to the wall with nails seated at the tongue at an interval of 350 mm. Note: Nail span can be 500mm if liquid nail used on the back of the wall panel.

On the other side, attach clips to the panel at an interval of 350 mm, then fix them to the wall with an air nailer. Note: Clip span can be 500mm if liquid nail used on the back of the wall panel.

Snap the second panel into place,the tongue of the second panel should fit into the groove of the first. Finish the rest in the same manner.

Around the corner, cut the panel to a suitable width.

Fix it to the wall with an air nailer

Complete the rest in the same manner and apply glue on the L-corner and attach it around the corner

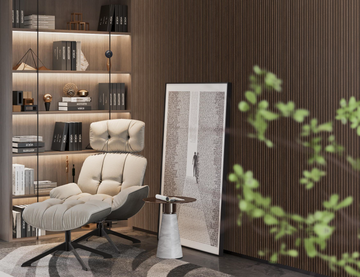

Installation finished
